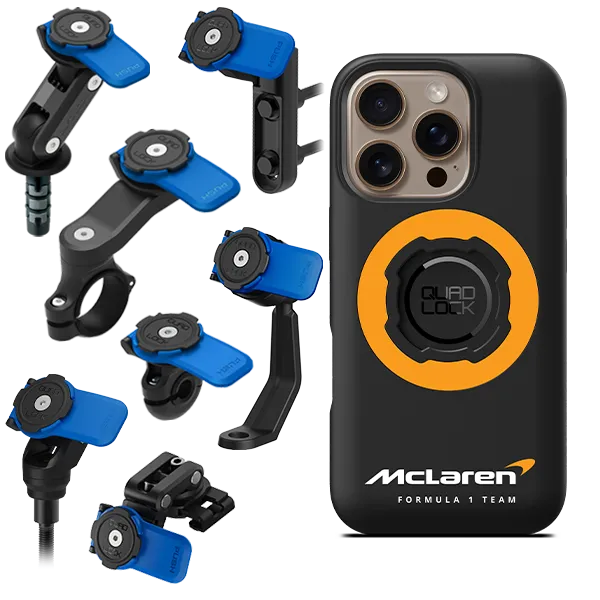

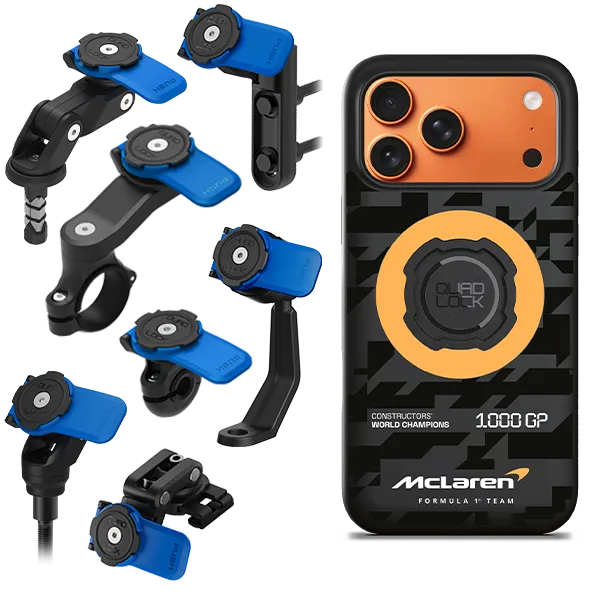

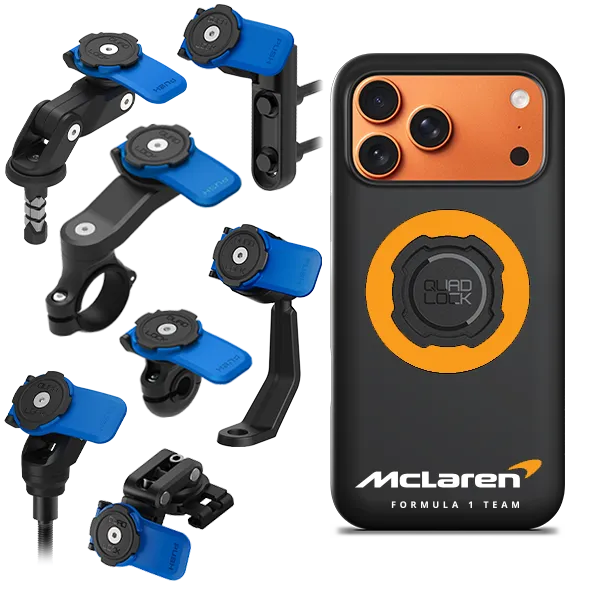

Motorcycle Kits - McLaren Edition

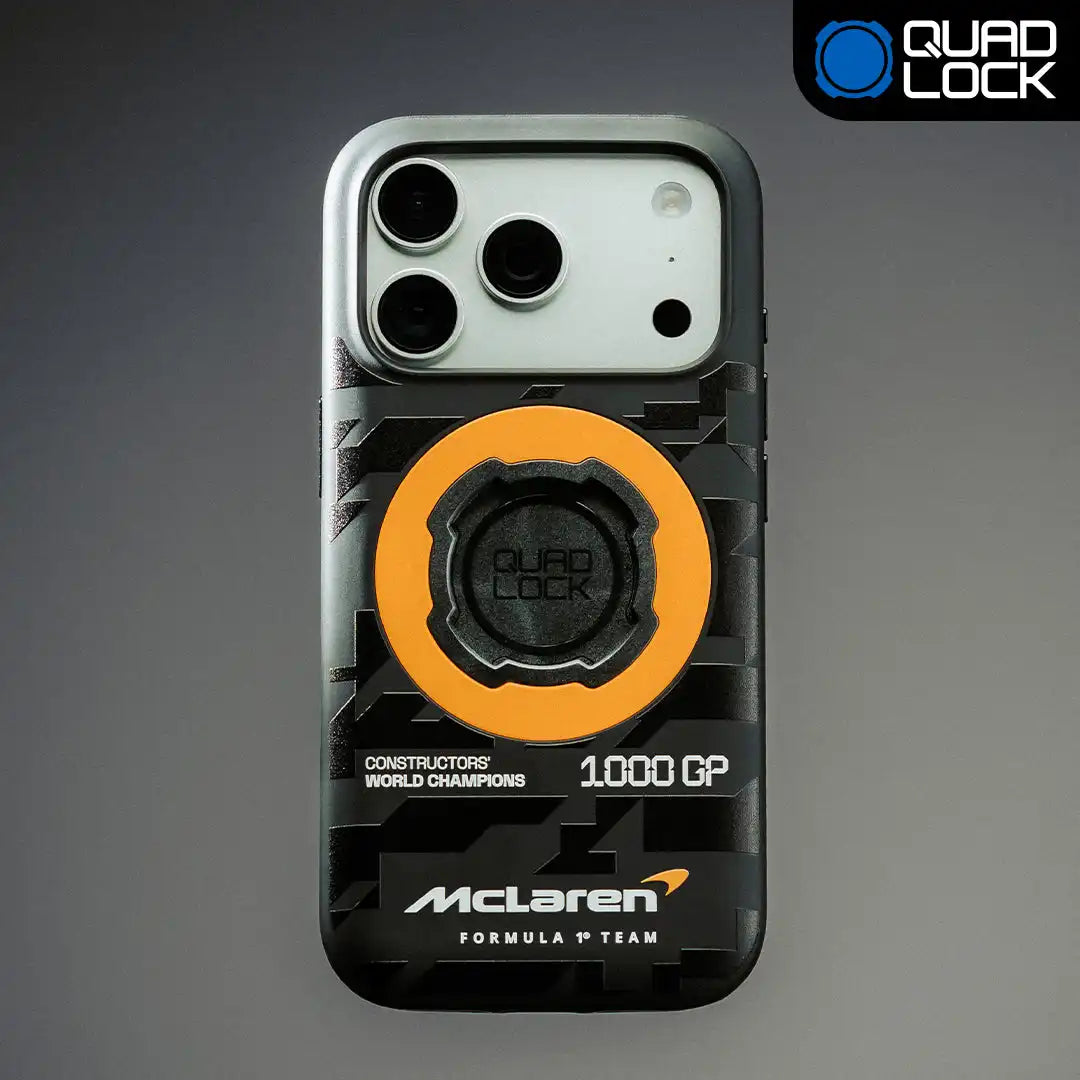

MAG CASE

• Secure Quad Lock® interface
• MAG Ring with strong-hold magnets pre-installed
• Composite construction (TPU / NYLON / PC)
• Protective lining
• Impact absorbing shell
• Compatible with wireless charging¹
• Compatible with Quad Lock® Twist, Lock Mounts and Heads, and Accessories
• Compatible with Quad Lock MAG™ Mounts and Heads, and Accessories
• Weight: 59 - 84g (2.08 - 2.96 oz)

HANDLEBAR CLAMP BOLT MOUNT

• Made from tough glass filled nylon
• Anti-rotation serrated bolt and spacers
• High tensile steel
• Replaces an existing M8 handlebar clamp bolt
• 135 degree knuckle angle adjustment without disassembly

FORK STEM MOUNT

• Made from tough glass filled nylon
• Stainless steel hardware
• Fits tube sizes from 12.7mm (½”) to 25.4mm (1”) internal diameter
• Suits cylindrical tube stems where no lip is present
• Weight: 85g (3oz)

BRAKE RESERVOIR MOUNT

• Made from tough glass filled nylon
• Stainless steel pivot pins and threaded inserts
• Powder coated steel bracket
• High tensile steel fasteners with micro-encapsulated thread locker
• Mount hole pitch range from 1-½” (38mm) to 2-¾” (70mm)
• Multi-pivot arm adjustment and head tilt adjustment
• Lateral adjustment when mounted on small brake reservoir lids

PONCHO

• Crystal clear TPU edge-to-edge protection
• Access to buttons
• Ports are closed for protection from mud and dust

^{Use of a screen protector in combination with the Poncho may affect touch screen usability.}

McLAREN EDITION

• 1 x McLaren x Quad Lock MAG Case in your chosen design with Papaya MAG Ring

HANDLEBAR MOUNT

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Handlebar Mount Clamp
• 1 x Extension arm
• 3 x Bar spacers
• 1 x Allen (Hex) Key

HANDLEBAR MOUNT PRO CHROME

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Chrome Clamp
• 1 x Chrome Extension arm
• 4 x Bar spacers
• 1 x Allen (Hex) Key

HANDLEBAR MOUNT PRO - LARGE

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Clamp - Large
• 1 x Extension arm
• 3 x Bar spacers
• 1 x Allen (Hex) Key

HANDLEBAR MOUNT PRO CHROME - LARGE

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Handlebar Mount PRO Chrome Clamp - Large
• 1 x Chrome Extension arm
• 3 x Bar spacers
• 1 x Allen (Hex) Key

HANDLEBAR CLAMP BOLT MOUNT

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Single Bolt - M8
• 1 x 5mm Serrated Spacer
• 1 x 10mm Serrated Spacer
• 1 x Offset Knuckle Adaptor
• 1 x Hex (Allen) Key

HANDLEBAR CLAMP BOLT MOUNT PRO

• 1 x Quad Lock® Index Head (with black lever)
• 1 x Single Bolt - M8
• 1 x 5mm Serrated Spacer
• 1 x 10mm Serrated Spacer
• 1 x Offset Knuckle Adaptor
• 1 x Hex (Allen) Key

FORK STEM MOUNT

• 1 x Quad Lock® Index head (with blue lever)
• 1 x Quad Lock® Fork Stem Mount
• 2 x Expanding Spacers
• 1 x Allen (Hex) Key

FORK STEM MOUNT PRO

• 1 x Quad Lock® Index head (with black lever)
• 1 x Quad Lock® Fork Stem Mount
• 2 x Expanding Spacers
• 1 x Allen (Hex) Key

BRAKE/CLUTCH MOUNT

• 1 x Quad Lock® Brake/Clutch Mount
• 2 x M6 x 45 serrated flange bolts with thread locker
• 2 x UNC 1/4"-20 x 1.75 serrated flange bolts with thread locker
• 2 x spacers
• 1 x combination 3mm/4mm hex (Allen) key

BRAKE RESERVOIR MOUNT

• 1 x Quad Lock® Brake Reservoir Mount
• 2 x M4 x 16 CSK screws
• 2 x M4 x 18 CSK screws
• 1 x combination 3mm/4mm hex (Allen) key

MIRROR MOUNT

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Small Bar Clamp
• 3 x Bar Spacers
• 1 x Allen (Hex) Key

MIRROR STEM MOUNT

• 1 x Quad Lock® Index Head (with blue lever)
• 1 x Quad Lock® Mirror Stem Mount
• 1 x M8 Shoulder Washer
• 1 x M10 Flat Washer
• 1 x 3mm Hex (Allen) Key

Optional Add-Ons:

1 x Slip-on Poncho to protect your phone from the elements
